MASTERmatic™

  • KaVo Plasmatec coating for a perfect grip and excellent hygiene
  • KaVo Triple Gear technology (M25L and M05L) for excellent, smooth running without disturbing vibrations
  • Particularly long-lasting KaVo high-tech FG chuck with carbide guide bushing
  • 30N retention power with centric, precise rotation for longevity and secure retention of the bur at all times
  • The ergonomic head-knee angle combinations and the small head size ensure the best view and optimal clearance, even in preparation areas that are difficult to access, for example when treating children and seniors
  • Quiet, low-vibration running thanks to high-quality ceramic ball bearings Made in Germany
  • Low volume (55 dB(A)) eliminates unpleasant noises for patients and dentists
  • KaVo INTRA LUX interchangeable heads for maximum flexibility with an almost limitless range of uses

Meeting your demands in everyday practice.

KaVo MASTERmatic handpieces and contra-angles mark the pinnacle of the KaVo instrument portfolio in terms of performance and comfort.

High-quality materials with excellent workmanship ensure a premium experience and numerous intelligent features make accurate work in everyday practice a real pleasure. And thanks to the comprehensive selection of interchangeable heads, the right MASTERmatic instrument is always available for almost any application. This is a real KaVo master.

The new KaVo MASTERmatic LUX M45 L high-speed contra-angle.

Improved ergonomics and optimized molar visibility.

KaVo launches the new high-speed contra-angle MASTERmatic LUX M45 L with a unique head/knee angle combination for optimum visiblity in the molar area. The CoolHead technology and the optimized spray water of this new contra-angle handpiece ensure even greater patient safety during treatments.

The innovative features of the KaVo MASTERmatic LUX M45 L allow to achieve the best possible results even in hard-to-reach areas of the patient´s mouth. The KaVo MASTERmatic LUX M45 L offers improved visibility, optimum access, maximum precision and exceptional reliability at the same time.

All features at a glance ->

MASTERmatic High-Speeds Videos

Features

Optimum access
thanks to exceptional head/knee angle combinations

Ceramic ball bearings
for excellent quiet and low-vibration operation

Small head size
for easy, efficient access to the preparation area

Glass rod light conductor
with up to 25,000 lux for reliable detection of the preparation margins

Replaceable spray microfilter
for effective and trouble-free spray cooling

Sterilizable
sterilizable at temperatures up to 135°C / 275°F

HighQuality

High-tech FG chuck
with carbide guide bush for optimum longevity, precise cutting and safety.

Whisper Quiet Operation
Quietest KaVo Air High-speed at 55 decibles

KaVo push-button chuck system
with a retention power of up to 32 N for secure retention of the bur

Variations

 M25 LM05 L MiniM45 LM07 LM20 LM29 LM10 L
Part no.1009.36301009.36401014.02801009.36101009.36201009.35801009.3570
Transmission1:51:51:4.22.7:11:17.4:11:1
Plasmatec coating



Triple-Gear technology

Exchangeable spray microfilter

Glass rod light conductor (25.000 Lux)
Thermodisinfectable
Sterilizable up to 135 °C (275°F)

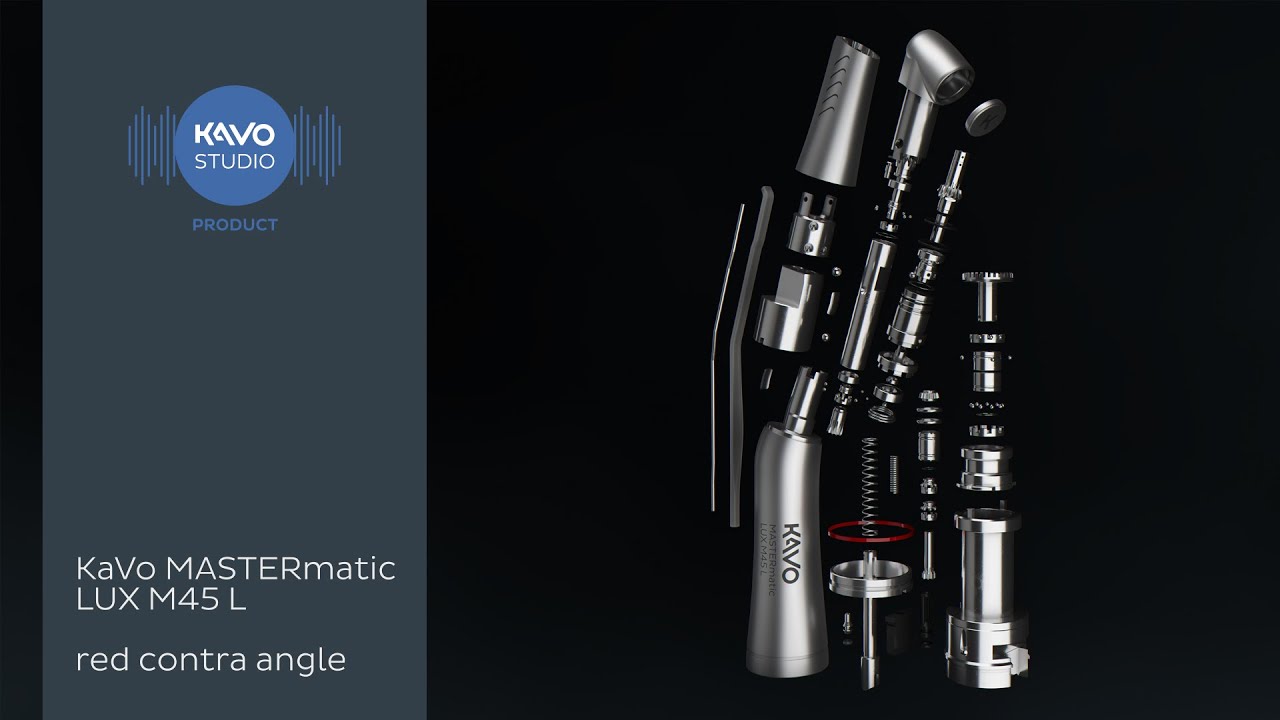

MASTERmatic LUX M45 L - High-speed electric attachment

  • Speed increasing 1:4.2
  • Unique head/knee angle combination
  • CoolHead Technology
  • Glass rod light conductor with up to 25,000 lux
  • Ceramic bearings
  • Speed range up to 168,000 rpm
  • Quiet operation (55 dB) and low vibration due to triple-gear transmission
  • Internally guided, separated cooling
  • Optimized 3-port spray
  • Exchangeable spray filter
  • Compatibility with burr lengths of up to 25 mm
  • For FG drills (1.6 mm)
  • Part no. 1014.0280

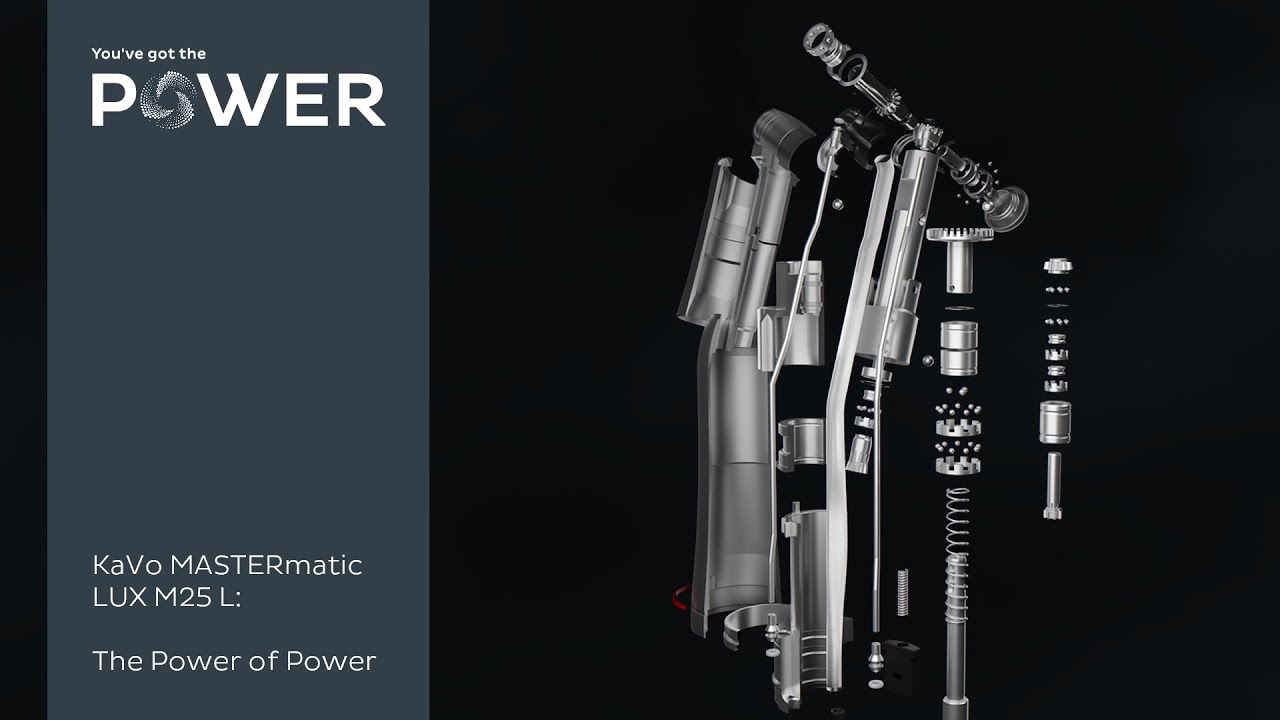

MASTERmatic M25 L - High-speed

  • Transmission 1:5
  • Triple gear transmission for reduced vibration
  • Ceramic bearings
  • Speed range up to 200,000 rpm
  • Cellular optic
  • Internal air / water coolant
  • Friction grip push button auto chuck
  • 3-port spray M25 L (1-port spray M05 L)
  • Now with field exchangeable spray filter for consistent spray performance
  • Works on electric or air motors that have a universal “E” type connection
  • Plasmatec hygienic coating
  • 100° head angle for superior access
  • Part no. 1009.3630

MASTERmatic M05 L Mini - Mini high-speed

  • Smaller Head Size
  • Transmission 1:5
  • Triple gear transmission for reduced vibration
  • Ceramic bearings
  • Speed range up to 200,000 rpm
  • Cellular optic
  • Internal air / water coolant
  • Friction grip push button auto chuck
  • 3-port spray M25 L (1-port spray M05 L)
  • With field exchangeable spray filter for consistent spray performance
  • Works on electric or air motors that have a universal “E” type connection
  • Plasmatec hygienic coating
  • 100° head angle for superior access
  • Part no. 1009.3640

MASTERmatic M20 L - Contra-angle

  • Transmission 1:1
  • Speed range up to 40,000 rpm
  • Cellular optic
  • With field exchangeable spray filter for consistent spray performance
  • Works on electric or air motors that have a universal “E” type connection
  • Plasmatec hygienic coating
  • Improved angulation for easy access
  • For use with INTRA heads
  • Part no. 1009.3620

MASTERmatic M07 L - Contra-angle

  • Reduction 2.7:1
  • Speed range up to 15,000 rpm
  • Cellular optic
  • Internal air / water coolant
  • Now with field exchangeable spray filter for consistent spray performance
  • Works on electric or air motors that have a universal “E” type connection
  • Plasmatec hygienic coating
  • Improved angulation
  • For use with INTRA heads
  • Part no. 1009.3610

MASTERmatic M29 L - Contra-angle

  • Reduction 7.4:1
  • Speed range up to 5,500 rpm
  • Cellular optic
  • Internal air / water coolant
  • With field exchangeable spray filter for consistent spray performance
  • Works on electric or air motors that have a universal “E” type connection
  • Plasmatec hygienic coating
  • Improved angulation
  • For use with INTRA heads
  • Part no. 1009.3580

MASTERmatic M10 L - Straight handpiece

  • Transmission 1:1
  • Speed range up to 40,000 rpm
  • Works on electric or air motors that have a universal “E” type connection
  • Plasmatec hygienic coating
  • Cellular optic
  • Internal air / water coolant
  • For straight handpiece burs 2.33 to 2.35 mm and contra angle burs 2.35 mm (burstop must be used and is included with purchase)
  • Part no. 1009.3570
