The perfect balance of power and performance – KaVo surgical instruments.
For surgical procedures with the utmost precision, the KaVo SURGmatic instrument range offers a wide selection of surgical instruments with the full range of rotations, torques and application options. Strike the perfect balance between power and performance.
- High-power at up to 80 Ncm torque (SURGmatic S201 XL Pro)
- Hexagon chuck system and robust ball bearings for remarkably high resilience (S 201 XL Pro)
- EXPERTgrip surface for a secure, comfortable grip and easy hygiene
- KaVo CoolHead technology actively prevents the instrument head from heating up excessively if the button is pressed by accident (only for the SURGmatic S15 L Pro)
SURGmatic S15 L Pro contra-angle
- Transmission ratio: 1:5 / up to 200,000 rpm
- FG bur (1.6 mm)
- CoolHead technology (prevents excessive heating of the instrument head)
- 3-nozzle spray / external coolant connection
- Optimized ball bearings for high durability
- EXPERTgrip for optimized grip and hygiene
- With light
SURGmatic S201 XL Pro contra-angle
- With Hexagon clamping system for a long service life
- Max. torque of 80 Ncm (also compatible with standard burs and screw-in tools)
- Overall reduction ratio 20:1
- Optimised clamping system to avoid jamming tool shanks
- Optimised head gearing and ball bearings for high durability
- Dismountable into head and shank
- EXPERTgrip for optimized grip and hygiene
- Head with internal cooling system (according to Kirschner and Meyer)
- External coolant connection
- With light
SURGmatic S201 L Pro contra-angle
- Max. torque up to 55 Ncm
- Overall reduction ratio 20:1
- Optimised clamping system to avoid jamming tool shanks
- Optimised head gearing and ball bearings for high durability
- Dismountable into head and shank
- EXPERTgrip for optimized grip and hygiene
- Head with internal cooling system (according to Kirschner and Meyer)
- External coolant connection
- With light
SURGmatic S11 L handpiece
- Max. Torque of 5.5 Ncm
- Transmission ratio 1:1
- EXPERTgrip for improved grip and hygiene
- For use with handpiece burs with standard length 44.5 mm
- External coolant connection
- With light
SURGmatic Series
| SURGmatic S15 L Pro | SURGmatic S201 XL Pro | SURGmatic S201 L Pro | SURGmatic S11 L | |
|---|---|---|---|---|
| Material no. | 1.014.4000 | 1.013.7541 | 1.013.7540 | 1.009.1010 |
| Ratio / Reduction | 1:5 | 20:1 | 20:1 | 1:1 |
| Max. Speed | 40.000 U/min | 40.000 U/min | 40.000 U/min | 40.000 U/min |
| Speed range* | 1.500 - 200.000 U/min | 15 - 2.000 U/min | 15 - 2.000 U/min | 300 - 40.000 U/min |
| Hexagon clamping system |
|
|
|
|
| Torque | n.a. | 80 Ncm | 55 Ncm | 5,5 Ncm |
| CoolHead |
|
|
| n.a. |
| External coolant connection |
|
|
|
|
| Glass rod light guide |
|
|
|
|
| EXPERTgrip |
|
|
|
|
| Can be dismantled |
|
|
|
|
| Thermodisinfectable/ sterilisable (135 °C) |
|
|
|
|
* with KaVo surgical motor S600 LED; motor speed range 300-40,000 rpm

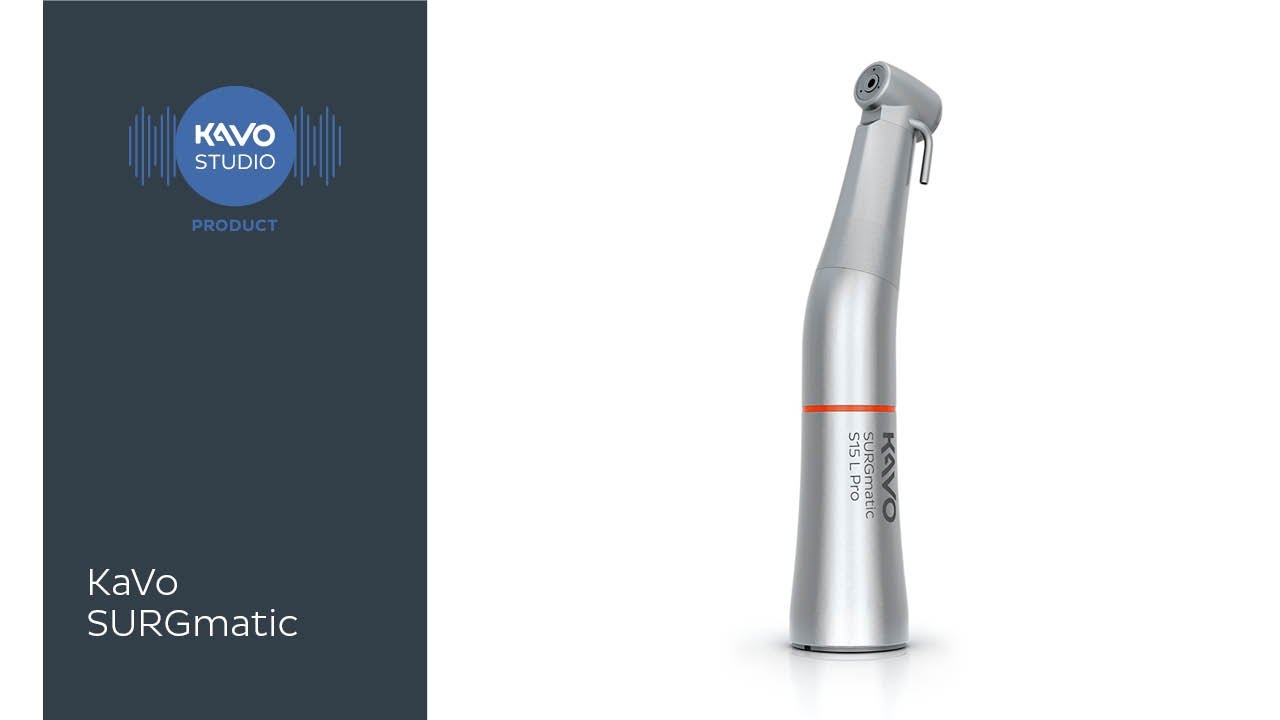

Surgical High-speed SURGmatic S15 L Pro.
Up to 200,000 rotations per minute and always a cool head.
There is no higher speed or better cutting performance: The SURGmatic S15 L Pro is the only speed-increasing instrument for dental surgery with a transmission ratio of 1:5 and up to 200,000 rpm.
The S15 L Pro sets a new standard, and its superior cutting performance, makes daily work from hemisection to crown cutting easier.
INTRA Series
Surgical handpiece 3610 N1
- Transmission ratio 1:1 up to 40.000 U/min
- For handpiece burs of standard length 44.5 mm
- Can also be used for contra-angle burs by inserting the enclosed bur stop
- With external coolant connector
- Easy to disassemble
- Strengthened drill chuck
- Mat. No.: 0.524.5600
Surgical handpiece 3610 N2
- Transmission ratio 1:1 up to 40.000 U/min
- For handpiece burs of specialised length 62.5 mm
- Can also be used for standard handpiece bur (44.5 mm) by inserting the bur stop
- With external coolant connector
- Easy to disassemble
- Strengthened drill chuck
- Mat. No.: 0.524.5610
Surgical handpiece 3610 N3
- Transmission ratio 1:1 up to 40.000 U/min
- For handpiece burs of specialised length 70.0 mm
- Can also be used for contra-angle burs by inserting the enclosed bur stop
- With external coolant connector
- Easy to disassemble
- Strengthened drill chuck
- Mat. No.: 0.524.5620
FAQs
They’re 100% Made in Germany. All instruments are exclusively developed and manufactured in Germany.
The main differences are as follows:
- Increase in the maximum torque to be transmitted from 55 Ncm to 80 Ncm with the SURGmatic XL Pro.
- Optimised chuck system for SURGmatic XL and L Pro for a longer service life for shanks.
- The optimised gearing of the SURGmatic XL has now also been adopted in the SURGmatic L Pro for a longer service life.
KaVo SURGmatic instruments fulfill the strict German RKI-requirements through a proven reprocessing. The effectiveness of the procedure (see user manual) is approved by tests of an accredited hygiene institute. The instruments should be reprocessed in assembled condition, as it corresponds to the validated reprocessing process (see user manual).
Tipps:
- The instrument can be disassembled in head and shank for manual non-fixing* pre-cleaning . *non fixing: no alcohols, no aldehydes
- Die Instrumente sind wasch- und desinfizierbar im Thermodesinfektor und sterilisierbar bis 138 °C / 280,4° F.
- Die Pflege sollte dann mit dem KaVo Spray oder QUATTROcare plus erfolgen.
Yes. However, this precludes the benefits of the max. torque transmission of 80 Ncm and the durability of the instruments and tools.
