• Fast and efficient: It takes just one minute for each maintenance cycle if you are processing four instruments, and the entire process is controlled via a program and automated.
  • Purging function: The innovative feature pressurises and cleans the instrument gear and spray channels with compressed air – doing so also removes excess oil residues.
  • Collet program: Optimal collet cleaning and care – for reliable instrument holding power and functional reliability.

QUATTROcare PLUS – 4 for the win!

KaVo QUATTROcare PLUS, including collet care, is probably the most efficient instrument preparation method available for dental practices. The KaVo QUATTROcare PLUS care system is not only incomparably thorough and economical, it is also easy to use.
Perfect for any instruments that are used on a daily basis in your dental practice.

Four handpieces in approx. one minute.

Just by the press of a button. Simple and fully automated.

KaVo QUATTROcare PLUS, offers maximum speed and user-friendliness. The KaVo QUATTROcare PLUS is characterised by easy handling.

Caring for your rotating instruments is now as fast as a whirlwind and very thorough. The secret: the new product care mixture. In the interior of the instruments, it froths up immediately and so detaches the dirt. And the automatic dispenser ensures exact lubrication. The result: 4 instruments are thoroughly cleaned and maintained internally during a single cycle.

Consequent efficiency of care

Longevity is not only a question of product quality, but also of regular, thorough maintenance.

Thanks to the KaVo QUATTROcare maintenance system, KaVo sets standards of efficiency for handpieces care. The innovative KaVo QUATTROcare PLUS maintenance systems offers:

  • incomparable thoroughness
  • economical
  • easy to use

Perfect for every handpiece used at your practice, every day.

Favourable purchase cost - Economical

Do you invest in top-quality handpieces? KaVo QUATTROcare PLUS ensures that your instruments maintain precision and value. Continuous cost savings and optimum performance, are only possible with perfect care and hygienically Reprocessed handpieces.

Automatic, metered dosing and the automatic, outlet-specific, handpiece detection system of the KaVo QUATTROcare PLUS ensure perfect, precise and economical consumption of KaVo QUATTROcare PLUS "Care Spray".

Unnecessary use will limit costs.

Technical Details & Accessories

  • Weight: 10 kg
  • Mains voltage: 100 – 240 V
  • Mains frequency 50 – 60 Hz
  • Power consumption approx. 24 W
  • Compressed-air pressure 4 – 6 bar
  • Compressed-air consumption approx. 50 NI/min
  • Width: 35 cm
  • Depth: 28 cm
  • Height: 38 cm
  • Care spray for use in KaVo QUATTROcare PLUS lubrication devices, environmentally friendly propellant, each contains 500 ml.
  • Pack. 2140 P (6 cans):
    Country-specific Mat. no. 1.005.4525* or 1.011.5720**
  • Service coupling for an automatic maintenance of the chuck system (REF 0.411.7603)
  • INTRAmatic treatment coupling (0.411.7981)
  • MULTIflex treatment coupling (0.411.7991)
  • INTRA Head treatment coupling (0.411.7941)
  • COMFORTdrive treatment coupling (1.005.1707)
  • SIRONA TE treatment coupling (1.000.1003)
  • SIRONA T1 turbine, treatment coupling (1.000.7156)
  • BIEN-AIR treatment coupling (1.001.7860)
  • W&H treatment coupling (1.001.7888)
  • YOSHIDA turbine with light, treatment coupling (1.000.7403)
  • YOSHIDA turbine without light, treatment coupling (1.000.7585)
  • MIDWEST Low Speed, treatment coupling (1.000.8459)
  • NSK turbine treatment coupling (1.000.8786)
  • OSADA turbine treatment coupling (1.000.8858)
  • Borden 2-hole treatment coupling (1.002.1217)
  • MORITA turbine treatment coupling (1.000.6063)
  • QUATTROcare PLUS Spray (package with x6 cans)) (1.005.4525)
  • Chuck servicing set: spray head for manual cleaning of chucks with QUATTROcare Plus Spray (1.003.1253)
  • Good room ventilation
  • No direct exposure to sunlight

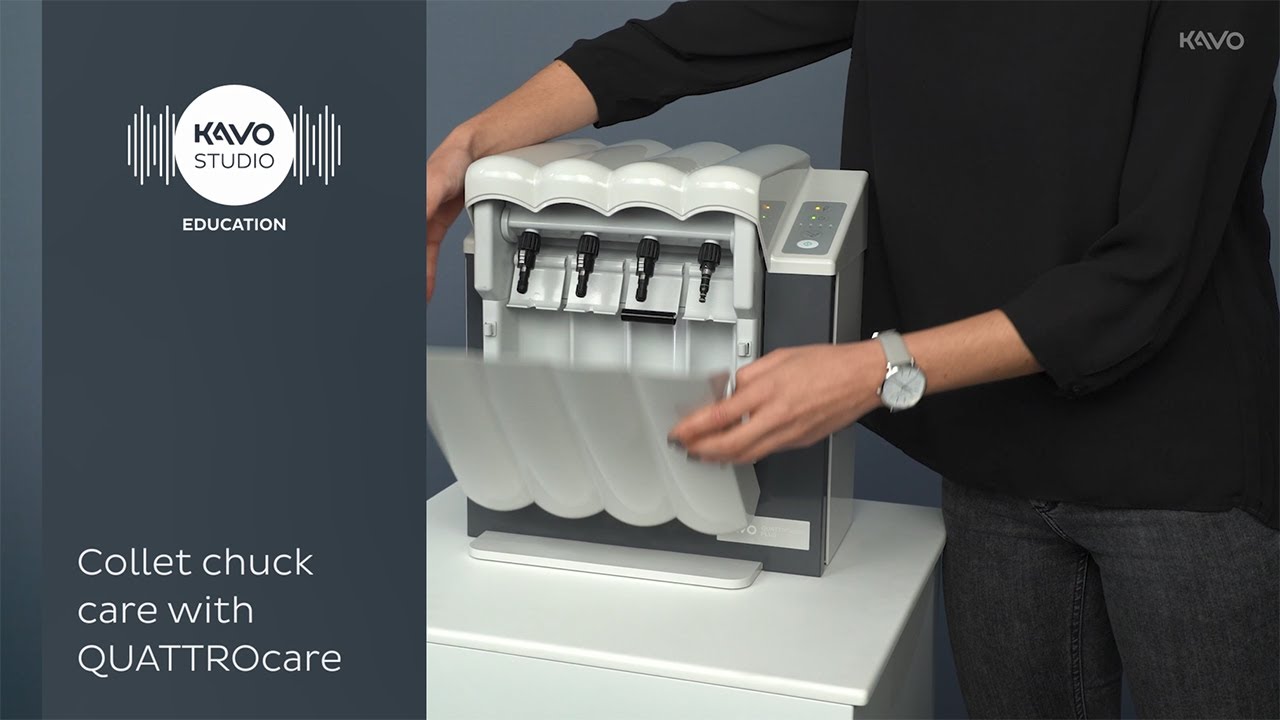

KaVo QUATTROcare Instruction videos

These videos cover how to operate the QUATTROcare PLUS automatic maintenance device. Our product manager Laura Mohr will guide you through the demonstration.

The difference, as always, is in the details

The rapid expansion of the foaming, cleaning agent in the KaVo QUATTROcare PLUS "Care Spray", dissolves inorganic material within the handpiece and then compressed-air blows out the residue, thereby providing the basis for optimum handpiece care and maintenance.

Although not essential, previous application of both KaVo CLEANspray and KaVo DRYspray is recommended, to definitively remove proteins from within the handpiece, prior to lubrication. The speed of the KaVo QUATTROcare PLUS, not only expedites your routine practice procedures, but also provides perfect handpiece care. This has a very positive effect on the service-life of your handpieces.

The automatic, metered dosing, ensures that each handpiece is subjected to maintenance with the prescribed amount of oil, corresponding to its type. Thus, unnecessary use of care oil is avoided and optimum handpiece performance is assured. KaVo QUATTROcare PLUS is universally compatible. This means that you can use KaVo QUATTROcare PLUS, not only for the care of your high-quality KaVo handpieces, but also for the care of handpieces from other established manufacturers.
